The Impact properties of the polymeric materials are directly related to the Overall toughness of the materials.
Toughness is defines as the ability of the polymer to absorb applied energy. Generally plastic films are being used for Packing purpose, which happen to undergo wear & tear. Hence strength of Impact Resistance is established to evaluate the quality and to get the impact load film can withstand. This method covers the determinates of the energy that cause, plastics film to fail under specific conditions of the impact of the free falling dart.
The energy is expressed in terms of weight of mass feeling from specified height, which would result in 50% specimen’s failure tested.

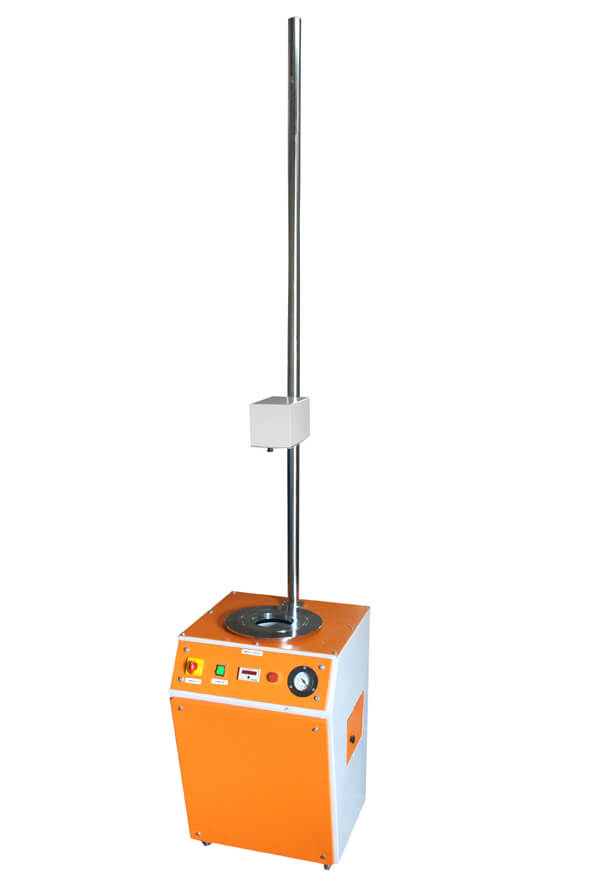

HEXA PLAST Falling Dart Impact Tester is designed to measure the Impact strength of the free falling dart.
OVERVIEW
USP:
HEXA PLAST provides impact tester for different plastic films, sheets, decorative laminates, corrugated roofing sheets etc. with range of Darts & selectable facility of height of fall with low efforts.
HEXA PLAST provides two different Electromagnetic system for light & heavy dart respectively which would help in selection of dart with smallest possible dart to heaviest one.
HEXA PLAST gives high – tech vacuum pump with gauge and clamping system to clamp the film tightly. We also provides Digital Counter for counting Number.
Application:
The Impact Properties of the polymeric materials are directly related to the overall toughness of the material. This method is used to determine the impact resistance of the plastic film under specific impact of the free falling dart.
| Model No. | HP – DIMC – I |
| Aluminium Dart | 5 gm to 500 gms |
| S.S. Dart | 5 gm to 500 gms |
| Vacuum Pump | 760 Hg Vacuum Pump |
| Counter | Digital Counter of 9999 Count |
| Power Supply | 1 Phase, 230 V, 50 Hz, |
